Description
DRB-420, Amana Polycrystalline Diamond (PCD) Tipped Double Flute 1/4 Dia x 3/4 Inch x 1/4 Shank Straight Plunge
Diamond tipped for cutting composite panels and fiberglass. Tool life is expected up to 100 times when compared with the carbide tip tooling. Also has a solid carbide tool body.
Excellent for Cutting:
- Fiberglass Reinforced Composites
- Lightweight composites
- Custom composite materials
- Fiber-reinforced urethane
- Fiber-reinforced structural foam floors
- MDF
- Particle Board
Benefits of Diamond Technology:
- Improved cycle times by enabling high material removal rates
- Faster speeds and feeds compared to conventional cutting tools
- Improved work piece quality with tight dimensional control
- Optimized machine tool efficiency by increasing production capacity
- Consistently good component surface finish
- Can be reground up to 5 to 7 times
- Wear rate is much less than the carbide tipped tools

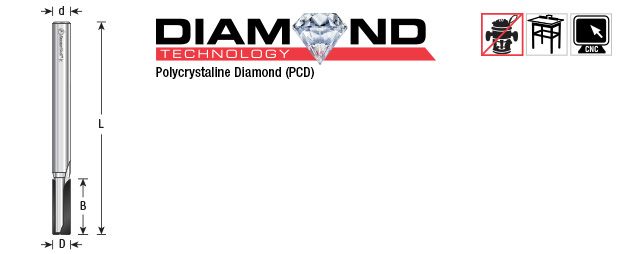

Specifications:
- Tool No. DRB-420
- (D) Diameter 1/4
- (B) Cutting Height 3/4
- (d) Shank 1/4
- Overall Length (L) 3
- Max RPM 10,000
- Flutes 2
